OVERVIEW
The LC094 – LCD KEYPAD Mounting Plate is a practical accessory
designed to securely hold and protect an LCD and keypad in a single
assembly for easier installation. Compatible LCD modules are 20×4
and 16×2 while 4×4 and 3×4 for the dome matrix keypad.
The mounting plate is meant to be screwed into a larger enclosure,
without the need to cut out exact holes for the LCD and keypad.

FEATURES

• Acrylic Plate: 3mm
• Compatible LCDs: 16×2 (1602) and 20×4 (2004)
  alphanumeric LCDs
• Compatible Keypad: 3×4 and 4×4 generic dome matrix
  keypad

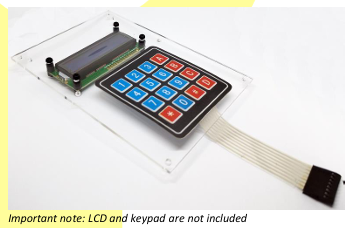

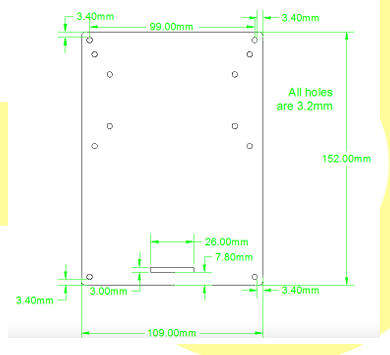

MECHANICAL DRAWING

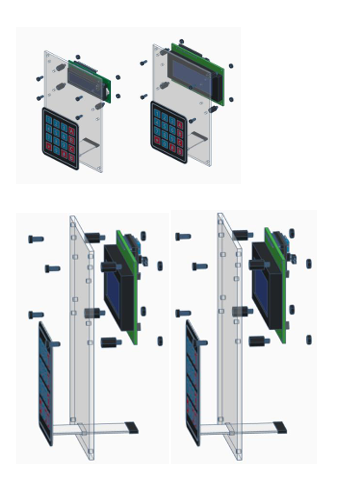

KIT CONTENTS
