OVERVIEW
The LC-079 DC Breakout Board is a simple module that
allows you to connect and use a DC power supply with a
standard 5.5mm DC plug in a breadboard without
splicing or complicated wiring. The board has a positive
and negative terminal each connected to a 4-pin
headers that securely fits into the positive and negative
rail of a standard breadboard. In case the power source
does not have connectors, the wires may be directly
connected to the board using the optional terminal
block.

FEATURES

• 5.5mm DC Jack input
• Optional screw terminal block input
• Standard 0.1” headers
• Breadboard and universal PCB compatible
• Supply Voltage: 3V – 12V
• Maximum Current: 1A
• Power indicator LED, < 15mA consumption
• Small form factor, board dimensions: 13x40mm
• Color coded pin headers

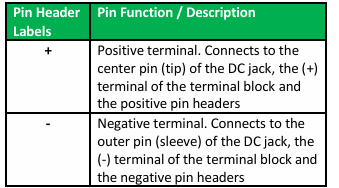

PIN HEADER FUNCTIONS

There are additional 4-pin header slots for the positive
and negative terminals where the user may install extra
pin headers in either the top or bottom side of the PCB.
The module accepts continuous voltages between 3V
and 12V and surges up to with a current of up to 1A.
The module has a built-in power LED indicator.

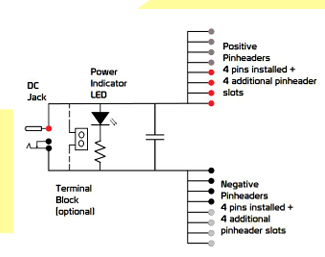

SCHEMATIC DIAGRAM

VARIANTS

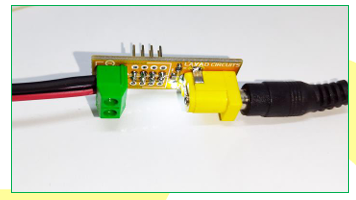

The module comes with or without a terminal block.
With the terminal block, the user may directly screw in
wires from the power source.

APPLICATION

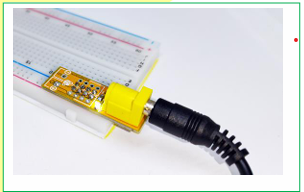

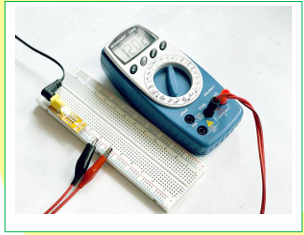

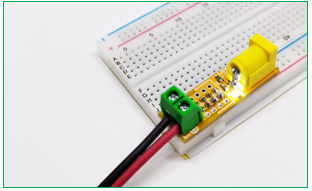

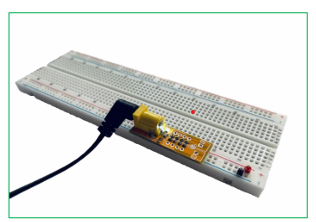

The board may be installed directly into the power rail
slots of any standard breadboard or used as a DC jack to
terminal block interface as shown in the examples
below

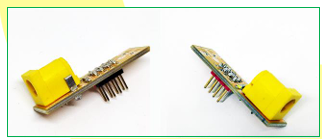

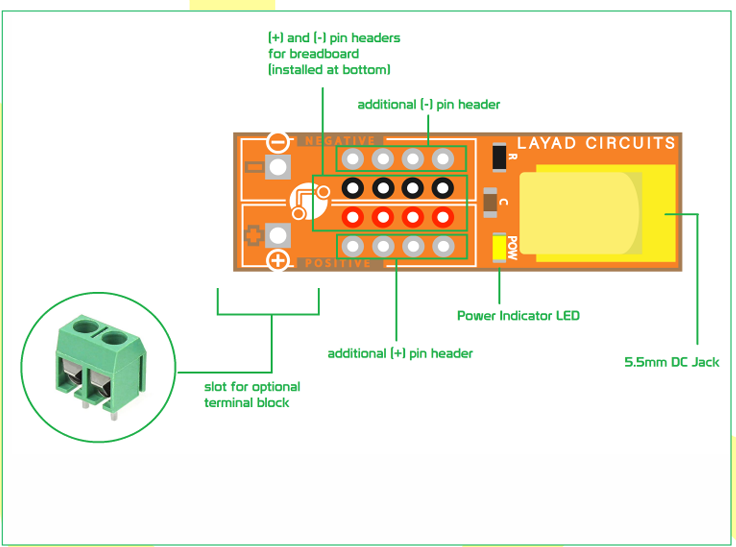

PARTS DIAGRAM
