OVERVIEW
The Layad Circuits LC-088 is a transparent, acrylic based
plastic enclosure designed for Arduino Uno, Arduino
Mega, Arduino Leonardo and other boards in the “R3”
form factor.
The base board has mounting holes that will fit the
Arduino via plastic hex standoffs. Additional mounting
holes with optional standoffs are available for a 16×2 LCD
module.

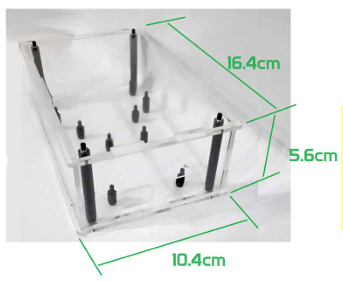

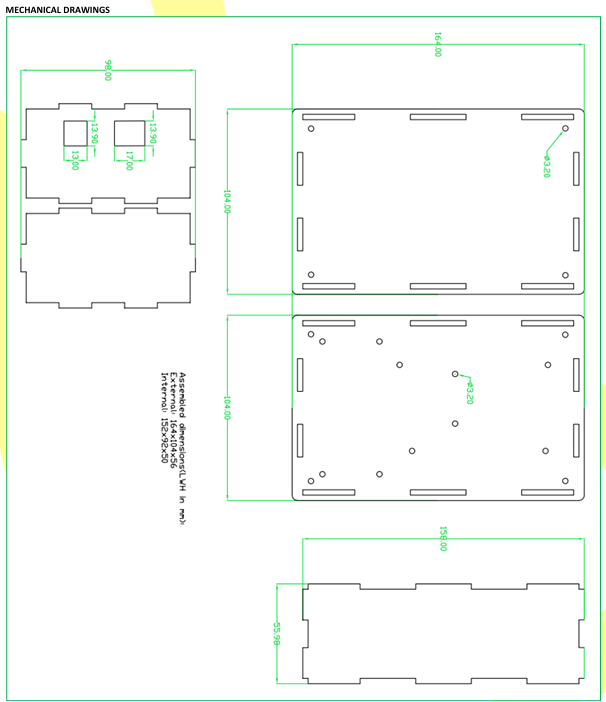

External enclosure dimensions are : 164x104x56 mm or
16.4×10.4×5.6 cm or 4.46″ x 4.09″ x 2.20″
The enclosure exposes the DC power and USB ports of the
Arduino allowing the user to power and program the
Arduino without disassembly. The plastic material makes
customizations or modifications relatively easy and is ideal
for wireless communications. As a project box, the user
may include all other electronics such as sensors, modules,
switches, components, wiring and other items inside the
box.
FEATURES
- Made of high quality, durable, transparent acrylic
plastic panels - Outer Dimensions: 164x104x56 mm
- Inner Dimensions: 152x92x50 mm
- Mounting holes for Arduino (Uno, Mega,
Leonardo, etc) - Mounting holes for 16×2 LCD module
- Cutout for Arduino DC power and USB ports
- Customizable, Easy to Modify
- All-plastic materials including spacers, screws and
nuts – ideal for wireless applications

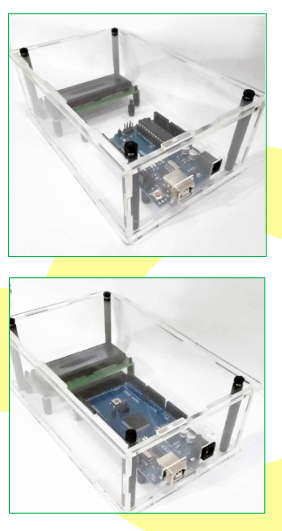

With Arduino UNO and LCD
Warning: This product is shipped unassembled and will
require user assembly.

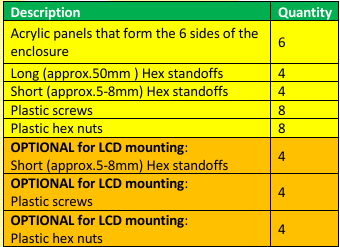

CONTENTS
The Arduino Project Enclosure M kit constist of the
following:

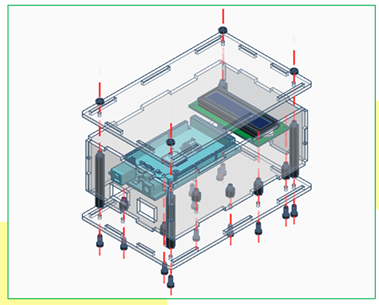

ASSEMBLY
With Arduino Mega and LCD
